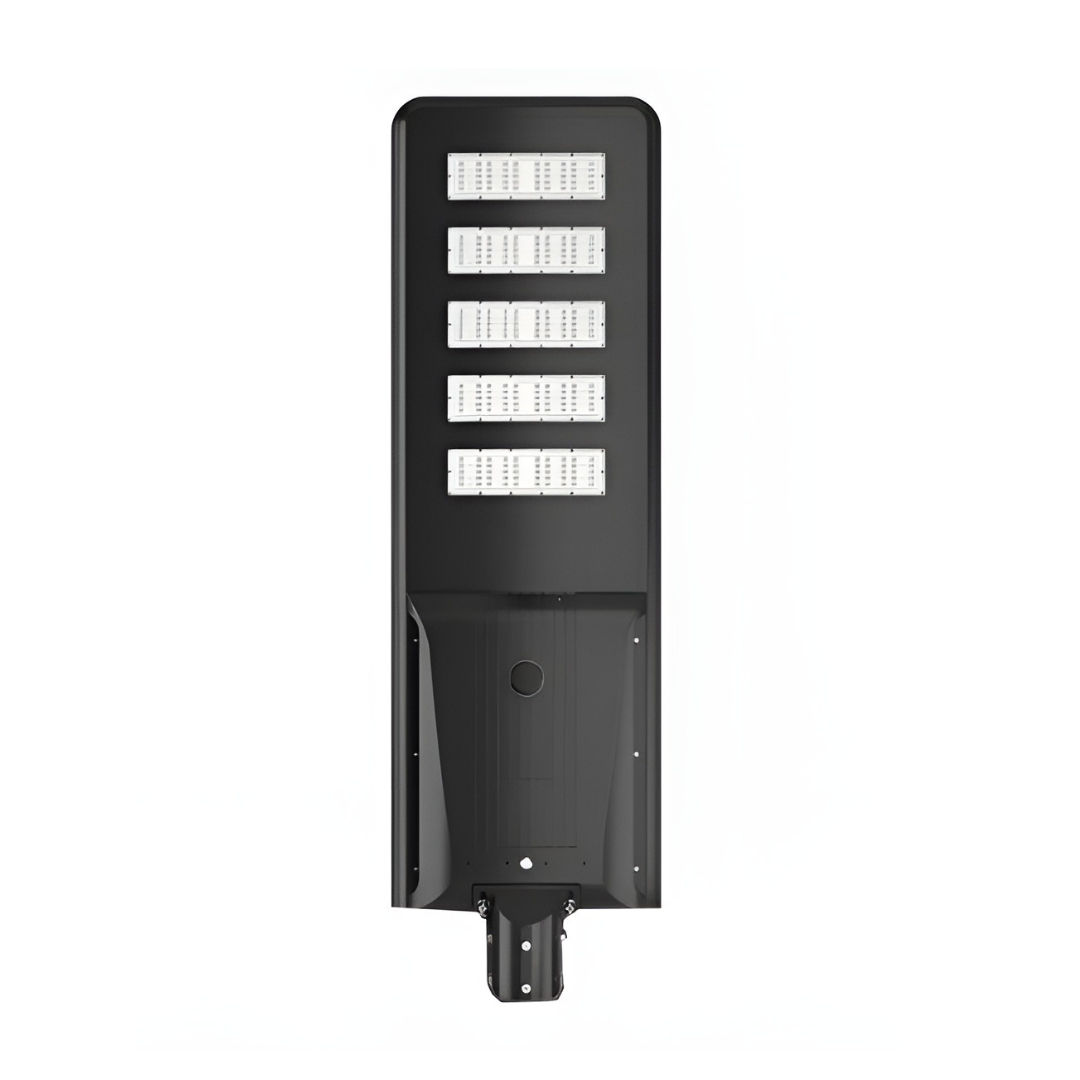

SOLENTRA-SSL-80W
SOLENTRA-SSL-80W

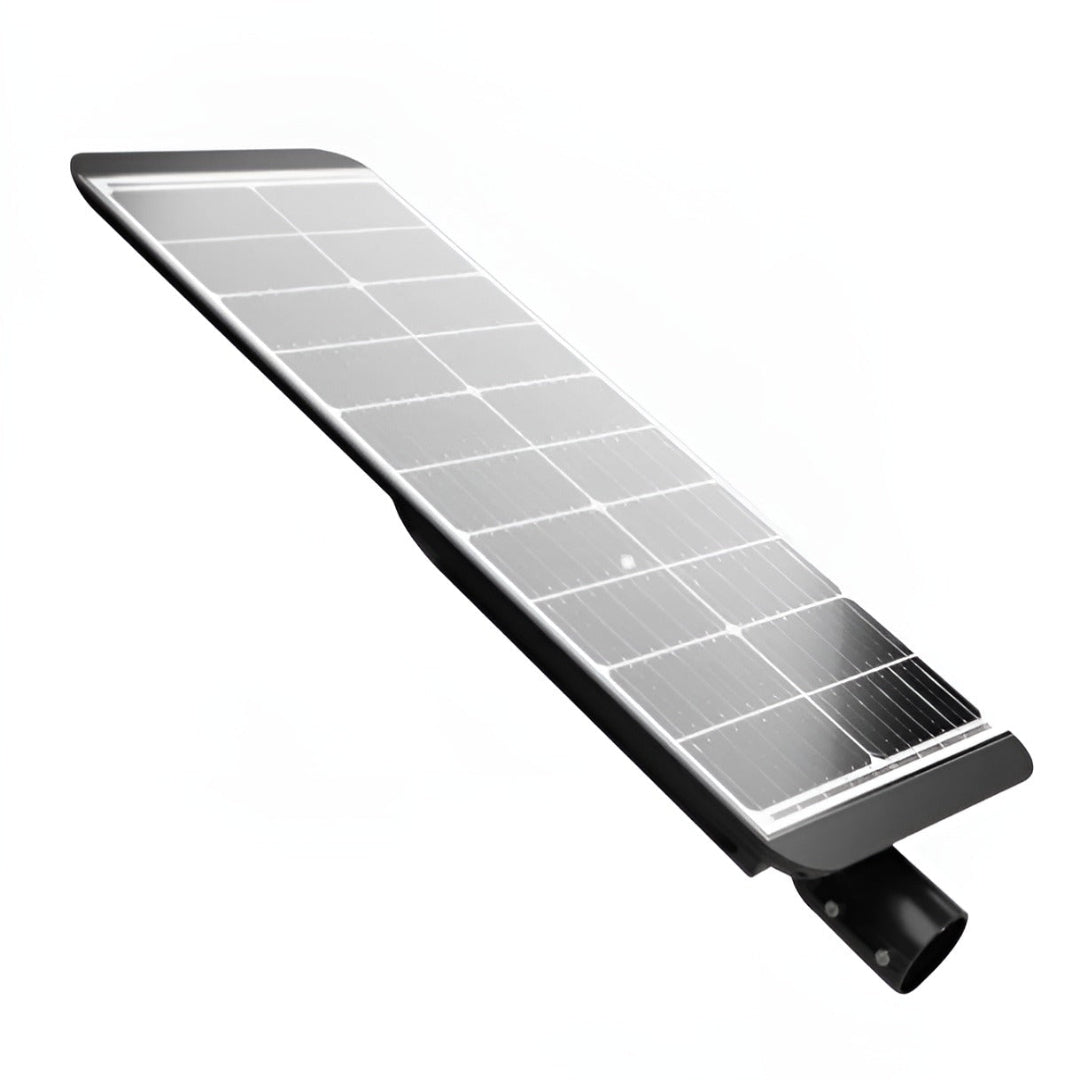

• Solar panel: 18V / 105W Mono-crystalline
• Battery: Lithium LifePO4 battery 12.8V 45AH (576WH)
• Dimension: 1395 * 398 * 135 mm
• Lumens: 16800LM 80W
• LEDs: Philips 3030 SMD 240pcs
• Light efficiency: 210 lm/W
• Controller: MPPT Lumiax
• Control method: Motion sensor + Time control + Auto on/off
• Discharge time: Induction mode > 48H
• Working time: > 12H

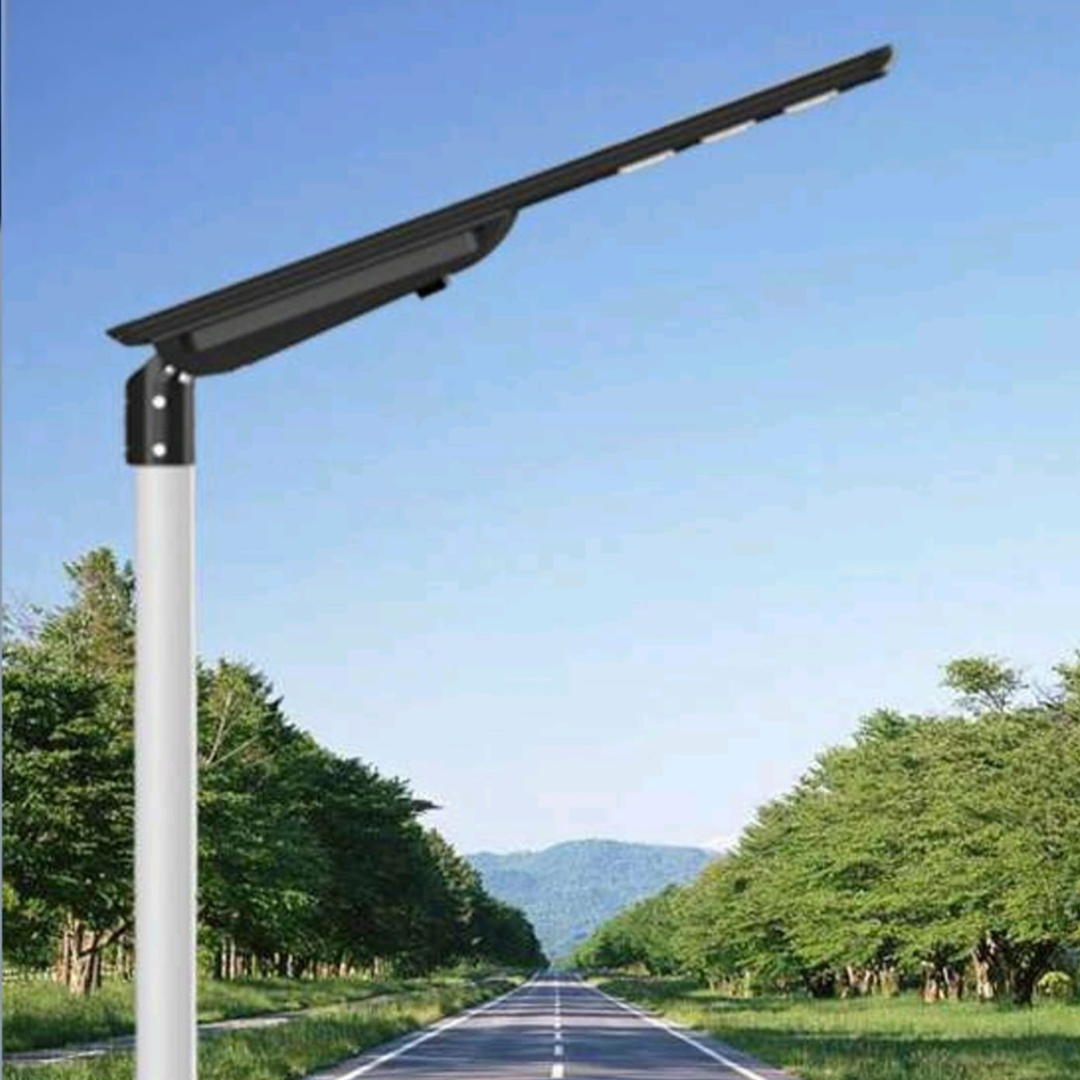

• Installation height: 11–12M
• 6 hours sunshine, support 2–3 rain days
Additional Requirements
Additional Requirements
Battery Capacity: 12.8V, 60AH.Battery Life: >3000 Cycle. Battery Box to have an aluminum heat sink tray under the battery with a thickness of 2mm, and 2 Clamps to hold the battery to the battery box base.
Controller: SRNE DM80
Program: 6H 100%, 6h 50%The Battery Box will have 3 pin plug for LED, and Solar Panel + Switch + Charging Indicator.
Remark Change
Remark Change
Panel Voltage: 18V 130W 130cmX58cm.
To:1520*580mm18V 180W
Controller with external display
AC-DC 3-5Nos
