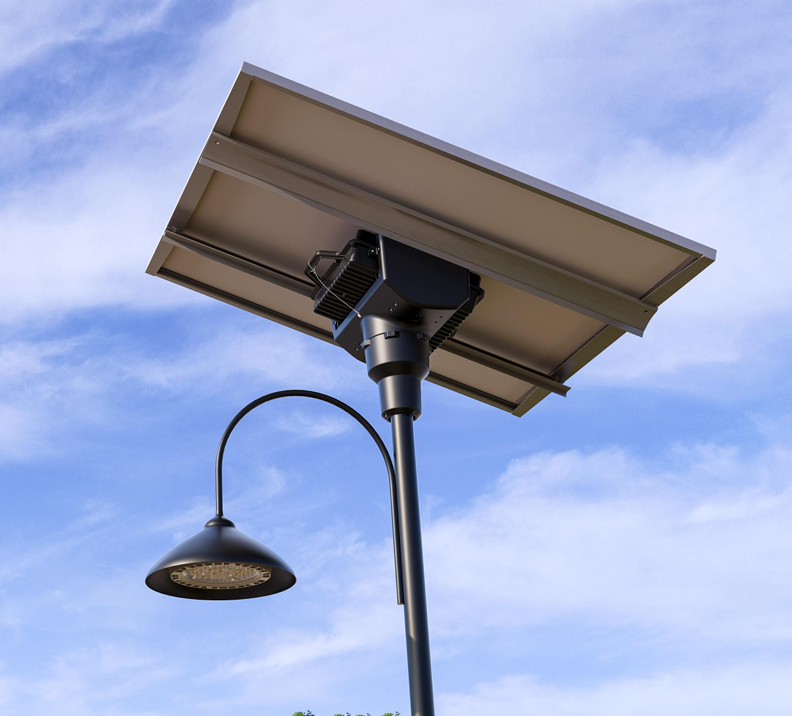

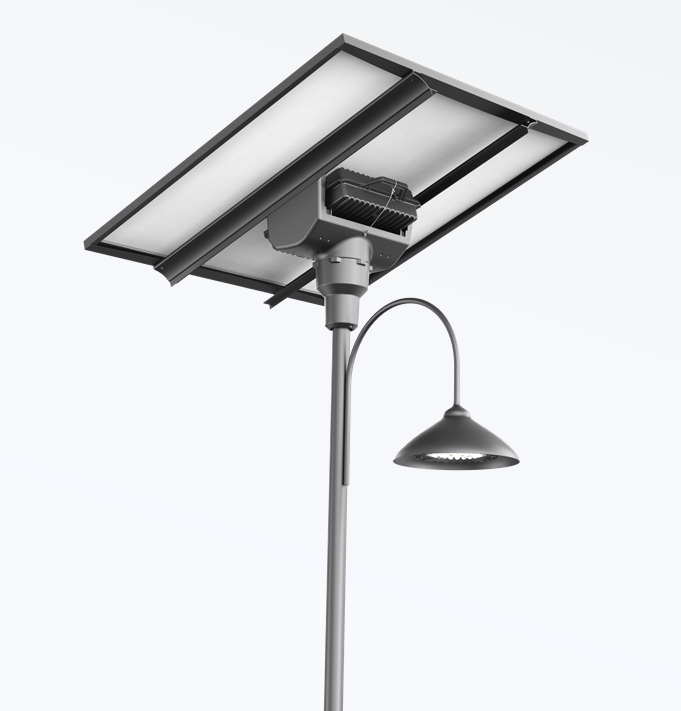

SOLARA 003-01
SOLARA 003-01
Solar Panel
• PV power: 18V 180W
• Silicon type: Monocrystalline silicon
• Cables: 3 meters
• PV dimensions: 980×980mm×30mm
Battery
• Type: LiFePO4
• Capacity: 60Ah, 12.8V
• Battery cell type: 32135 15AH, 3.2V A+ Grade
• Battery cell working temperature:
• Charge: -10~60°C
• Life: >3000 cycle
Controller : Model: DM180
LED
• LED power: 60W
• LED chip type: Philips SMD 5050
• Luminous flux: 11000lm
• Luminous efficiency: 170lm/w
• CCT: 4000K
• Work Mode: First 6 hours 100%, then 6 hours 50%
• Lamp size: φ450×277mm
Additional Requirements
Additional Requirements
Battery Capacity: 12.8V, 60AH.Battery Life: >3000 Cycle. Battery Box to have an aluminum heat sink tray under the battery with a thickness of 2mm, and 2 Clamps to hold the battery to the battery box base.
Controller: SRNE DM80
Program: 6H 100%, 6h 50%The Battery Box will have 3 pin plug for LED, and Solar Panel + Switch + Charging Indicator.
Remark Change
Remark Change
Panel Voltage: 18V 130W 130cmX58cm.
To：1520*580mm18V 180W
Controller with external display
AC-DC 3-5Nos
