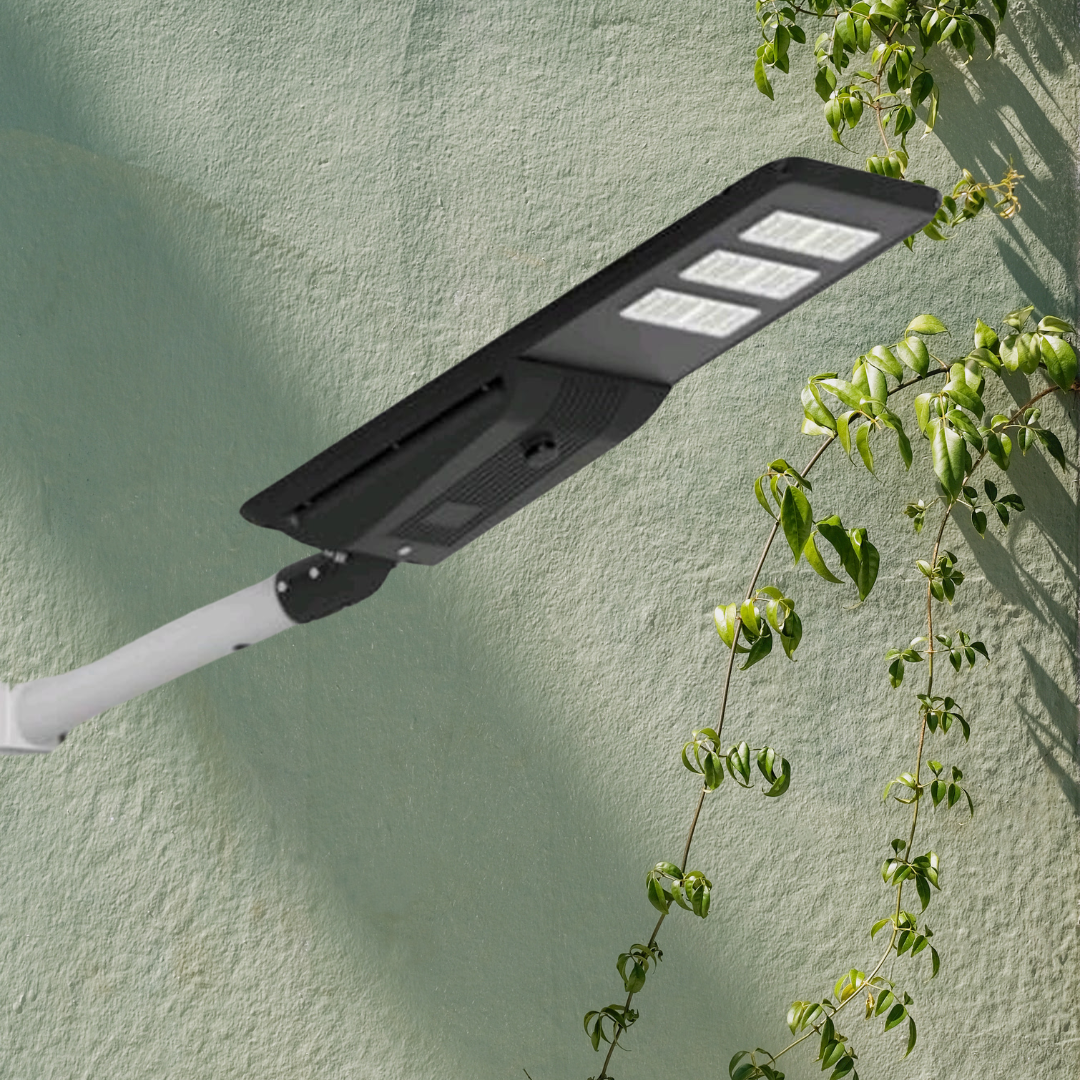

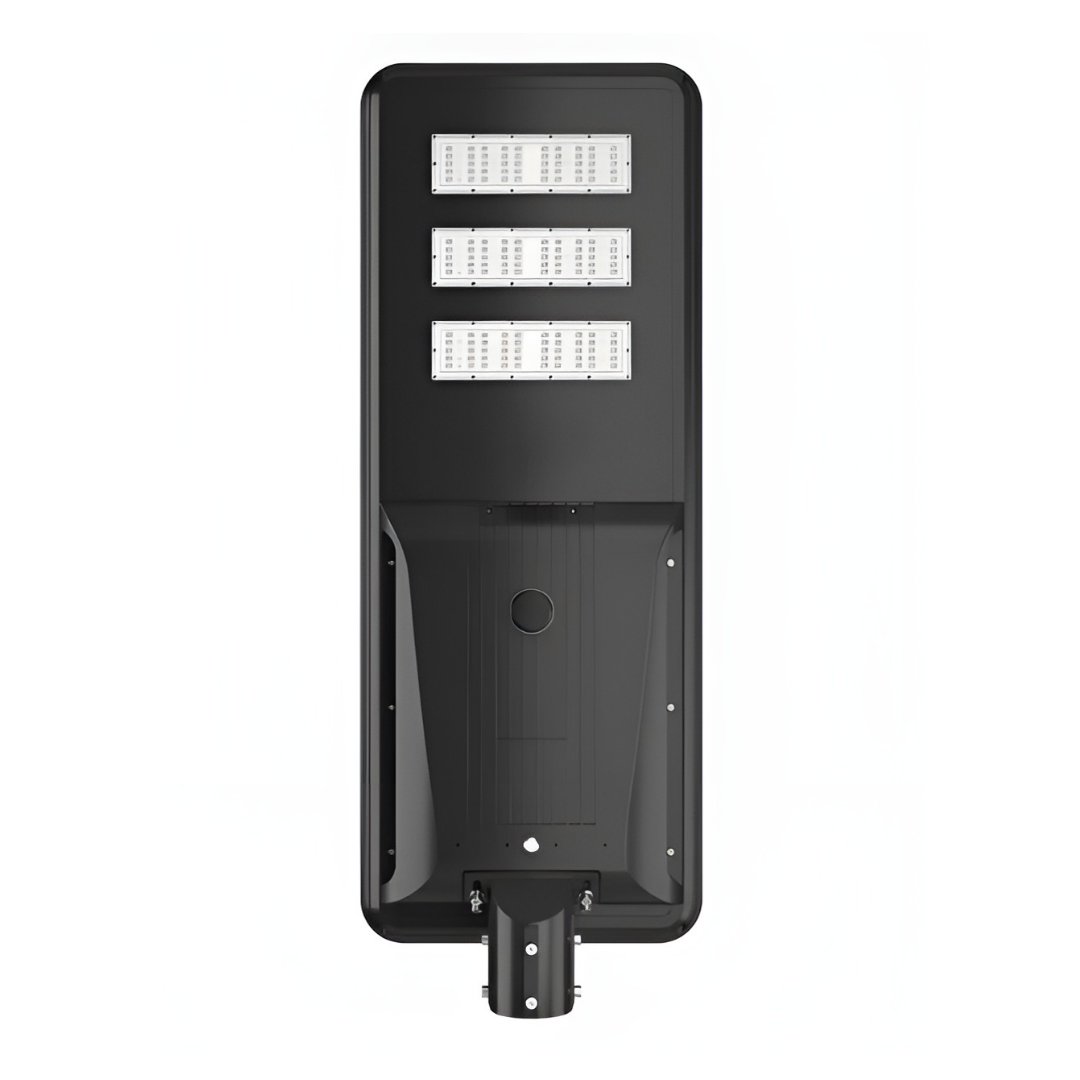

SOLENTRA-SSL5-40W

SOLENTRA-SSL5-40W

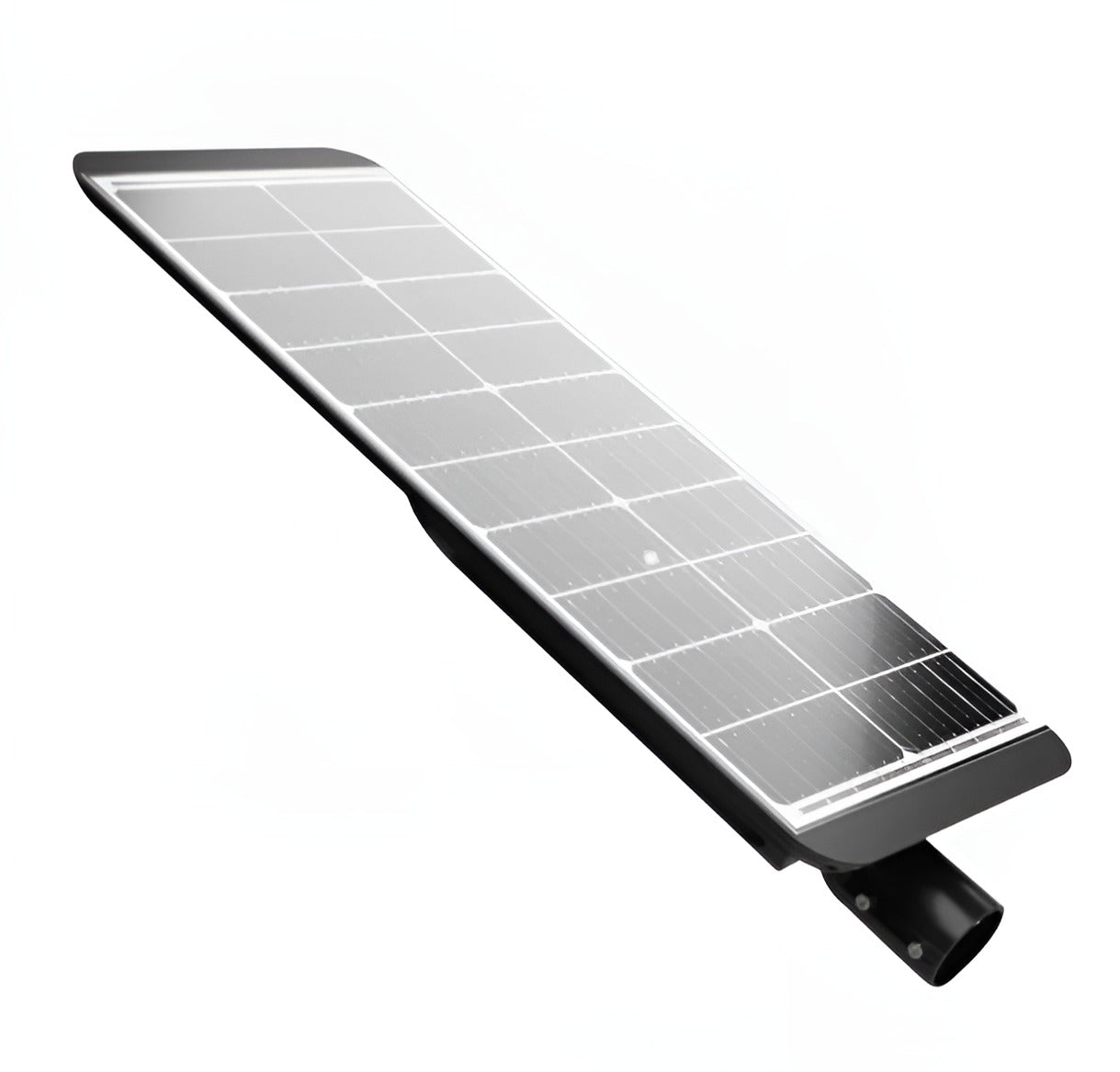

Solar panel: 18V / 60W Mono-crystalline
Battery: Lithium LifePO4 battery 3.2V 100AH (320WH)
Dimension: 893 * 398 * 35 mm
Lumens: 8400LM 40W
LEDs: Philips 3030 SMD - 144 pcs
Light efficiency: 210 lm/W
Controller: MPPT Lumiax
Control method: Motion sensor + Time control + Auto on/off
Discharge time: Induction mode > 48H
Working time: > 12H
Installation height: 7–8M
6 hours sunshine, support 2–3 rain days

Additional Requirements

Battery Capacity: 12.8V, 60AH.Battery Life: >3000 Cycle. Battery Box to have an aluminum heat sink tray under the battery with a thickness of 2mm, and 2 Clamps to hold the battery to the battery box base.

Controller: SRNE DM80

Program: 6H 100%, 6h 50%The Battery Box will have 3 pin plug for LED, and Solar Panel + Switch + Charging Indicator.

Remark Change

Panel Voltage: 18V 130W 130cmX58cm.
To:1520*580mm18V 180W
Controller with external display
AC-DC 3-5Nos
