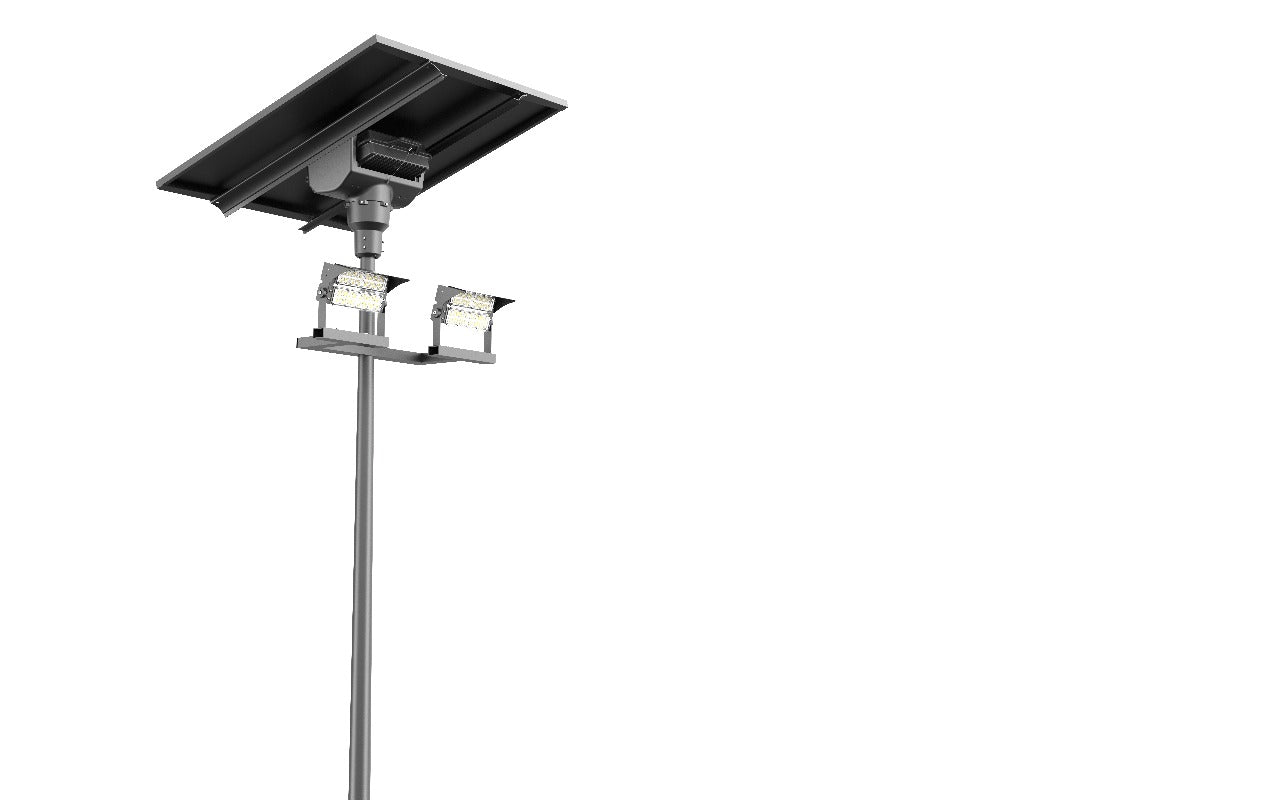

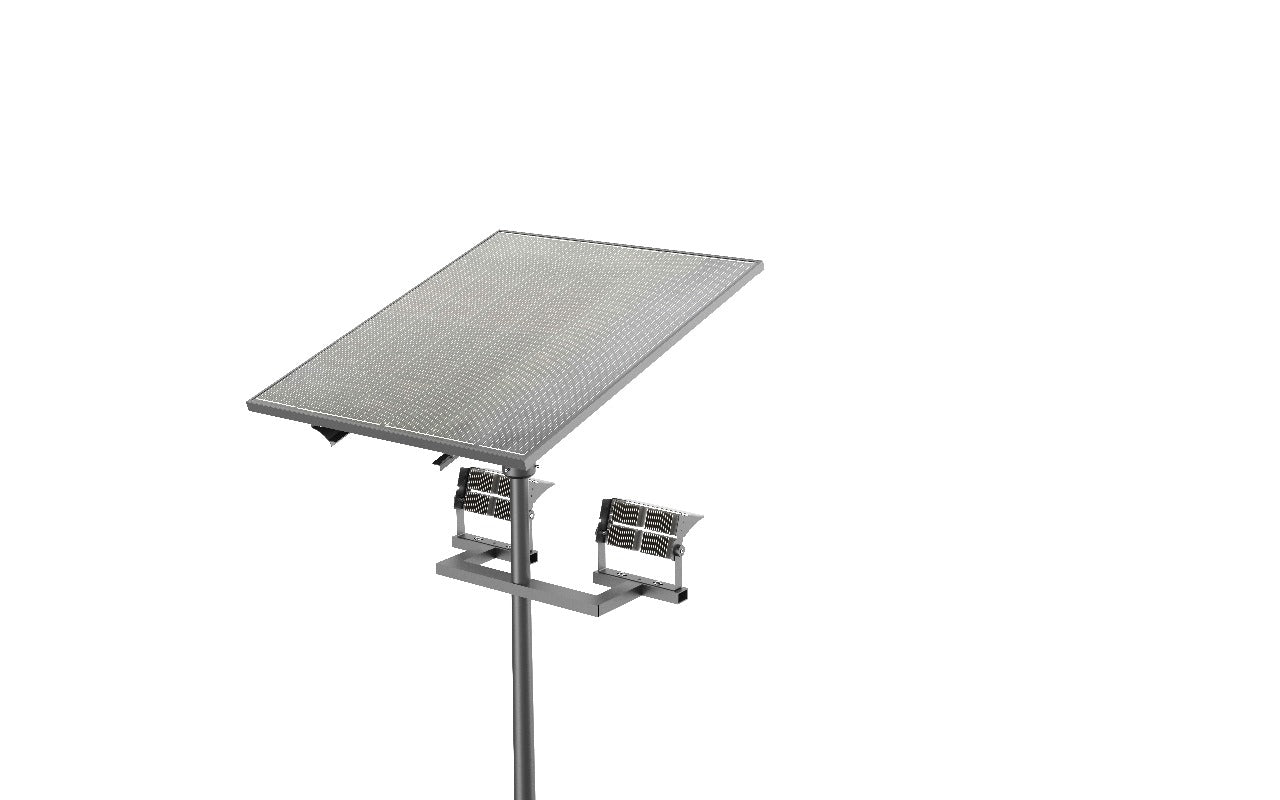

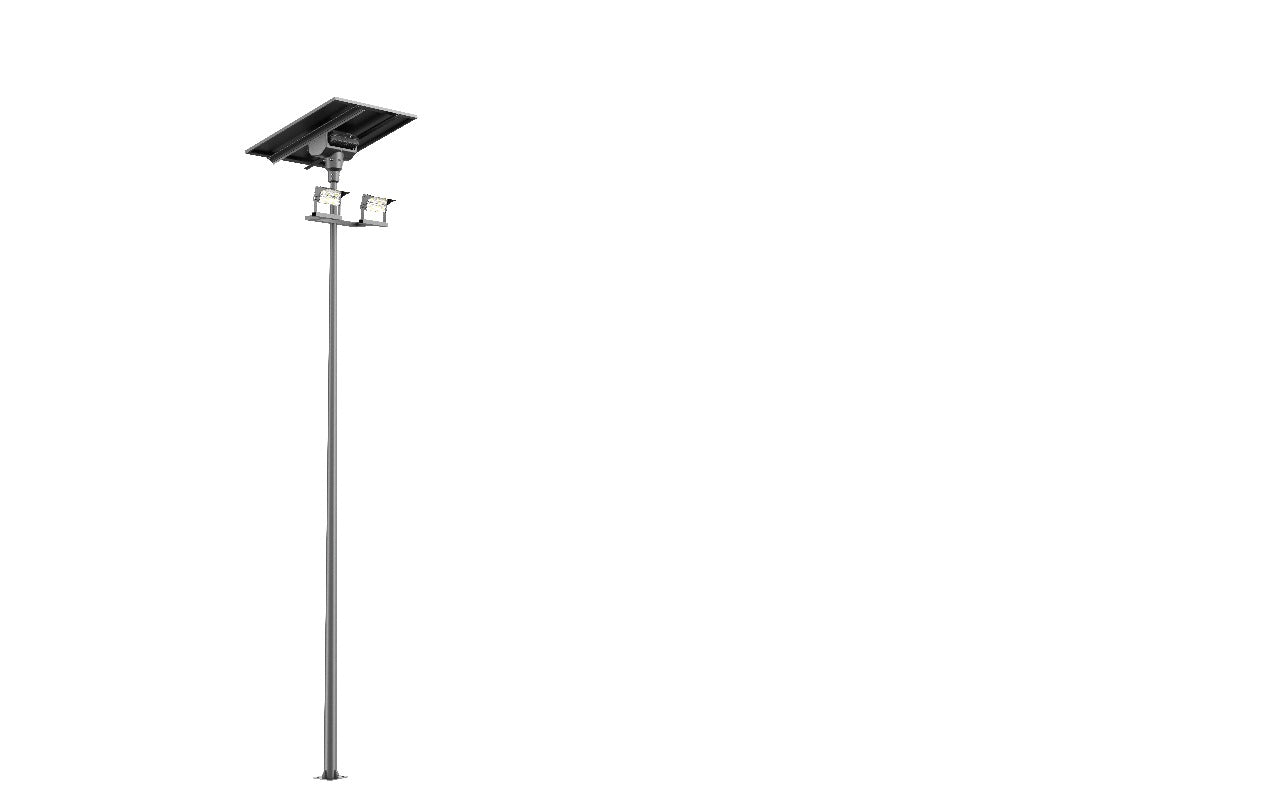

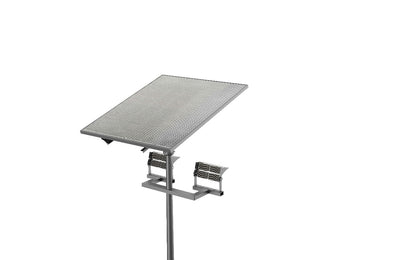

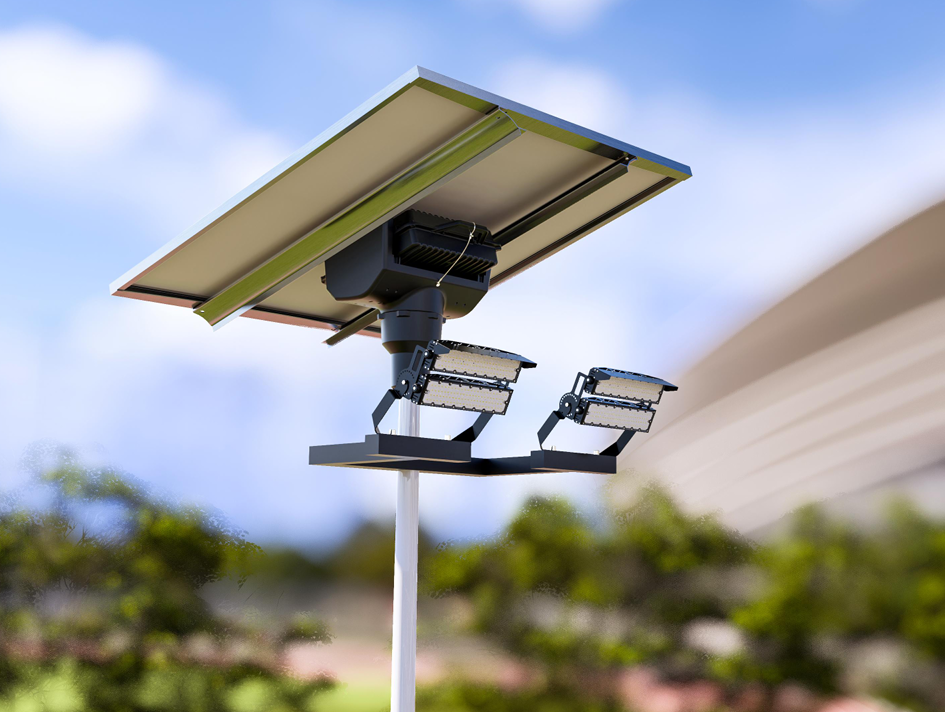

SOLARA 004-01
SOLARA 004-01
LIGHTING
• LED Power: 100W + 100W
• LED Chip Type: Philips SMD 5050
• Luminous Flux: 11000lm + 11000lm
• Luminous Efficiency: 170lm/W
• CRI: 70
• Heat Sink: Yes
• CCT: 4000K
• Sensor: No
• Lifespan: 5 Years
• Work Mode: First 6 hours 100%, then 6 hours 50%
• Size: 350 × 250 × 150 mm
BATTERY
• Type: LiFePO4 Battery
• Voltage: 25.6V
• Capacity: 60Ah
• Cell Type: 32135, 15Ah, 3.2V Grade
• Working: Charge -10 ~ 60°C / Discharge -10 ~ 60°C
• Temperature: -20 ~ 60°C
• Lifespan: > 3000 Cycles
• Brand: Gotion High Tech 32135, 15Ah, 3.2V A+ Grade
SOLAR PANEL
• Silicon Type: Monocrystalline Silicon
• PV Power: 260W
• Life Span: 10 Years
• Cables: 3 Meters
• PV Dimension: L 1134mm × W 1303mm × T 30mm
• Structure: With Frame
CONTROLLER
• Brand: LUMAX
• Type: MPPT
• Model: Z07S
• Lifespan: 5 Years
GENERAL
• Material - Street Light: Aluminum + Lens + PC Diffuser
• Material - Battery Pack: Aluminum
• IP Rating: IP65 at least
• Battery Pack: 3 pin plug for Light & Solar Panel, Switch & Charging Indicator
• Battery Holder: Rotatable
• Street Light: 15° Tiltable Up/Down
• Warranty: 5 Years for the whole system
PACKING INFORMATION
• 1 Box = 1 Set
• 15.5 KG
• L 589mm × W 207mm × D 78mm
AVAILABLE COLOUR
• Black
APPLICATIONS
• Community Roads, Farmhouses
• Industrial Sites, Warehouses
Additional Requirements
Additional Requirements
Battery Capacity: 12.8V, 60AH.Battery Life: >3000 Cycle. Battery Box to have an aluminum heat sink tray under the battery with a thickness of 2mm, and 2 Clamps to hold the battery to the battery box base.
Controller: SRNE DM80
Program: 6H 100%, 6h 50%The Battery Box will have 3 pin plug for LED, and Solar Panel + Switch + Charging Indicator.
Remark Change
Remark Change
Panel Voltage: 18V 130W 130cmX58cm.
To:1520*580mm18V 180W
Controller with external display
AC-DC 3-5Nos
