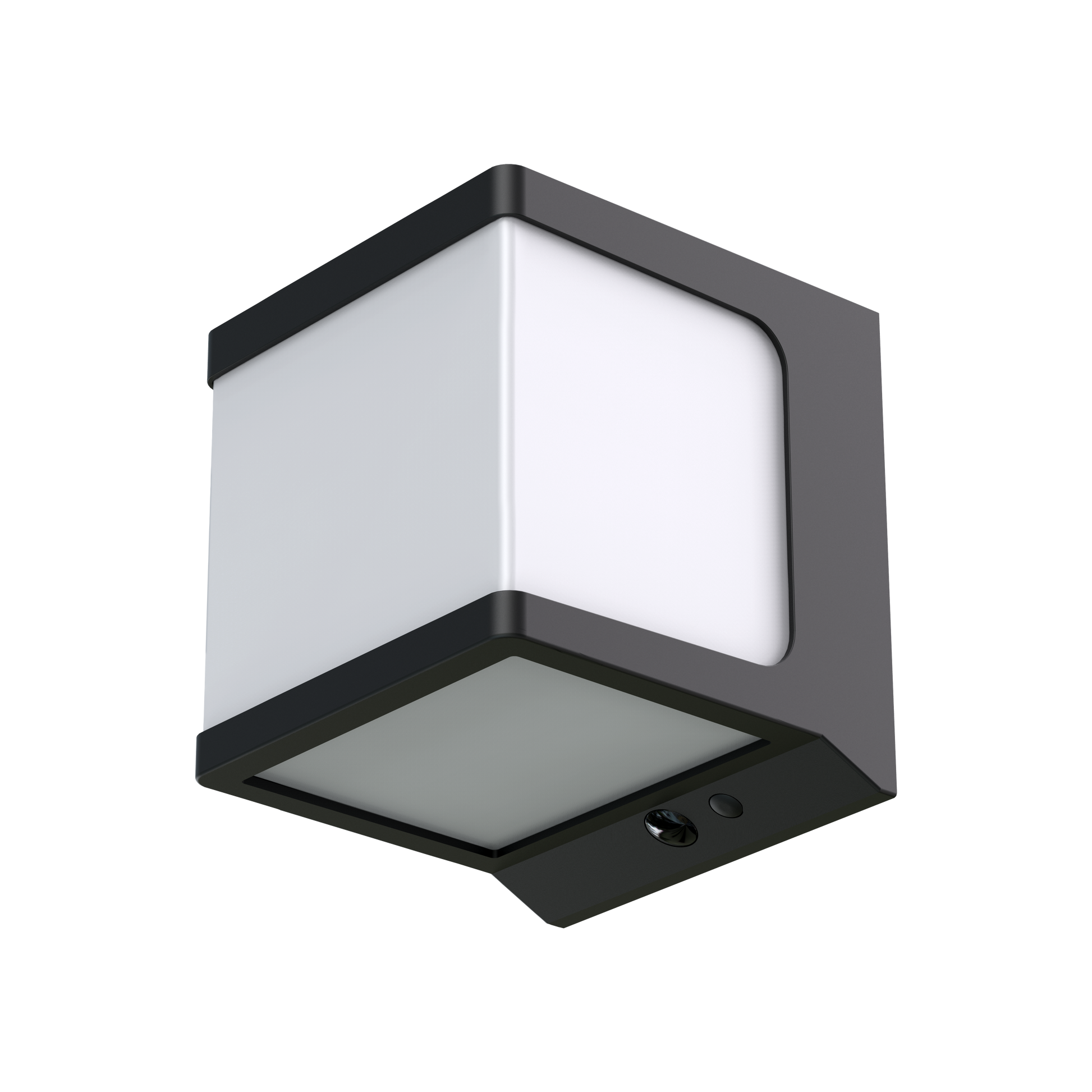

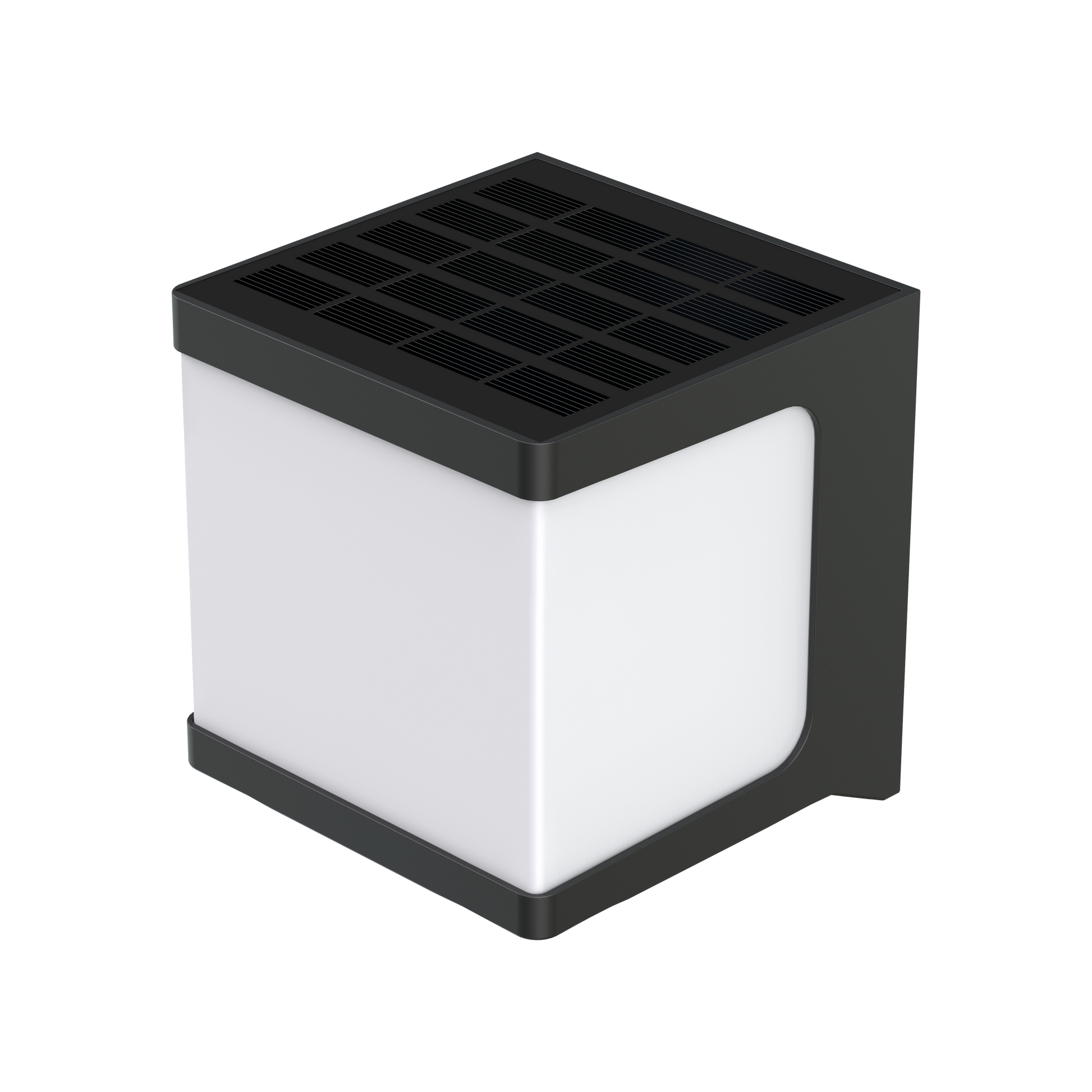

CUBE

CUBE

 Light Brightness: 1000 Lumens

Capacity 3.7V 7.4WH
 Charging / Discharging Temp: 0~45℃ / -20~60℃
 Charging Time: 6.5H
 LED: 2835 20pcs
Color Temp: 4000K, Ra>70
 Efficiency :160lm/W
 Types of Lighting: Anti-glare

Additional Requirements

Battery Capacity: 12.8V, 60AH.Battery Life: >3000 Cycle. Battery Box to have an aluminum heat sink tray under the battery with a thickness of 2mm, and 2 Clamps to hold the battery to the battery box base.

Controller: SRNE DM80

Program: 6H 100%, 6h 50%The Battery Box will have 3 pin plug for LED, and Solar Panel + Switch + Charging Indicator.

Remark Change

Panel Voltage: 18V 130W 130cmX58cm.
To:1520*580mm18V 180W
Controller with external display
AC-DC 3-5Nos
